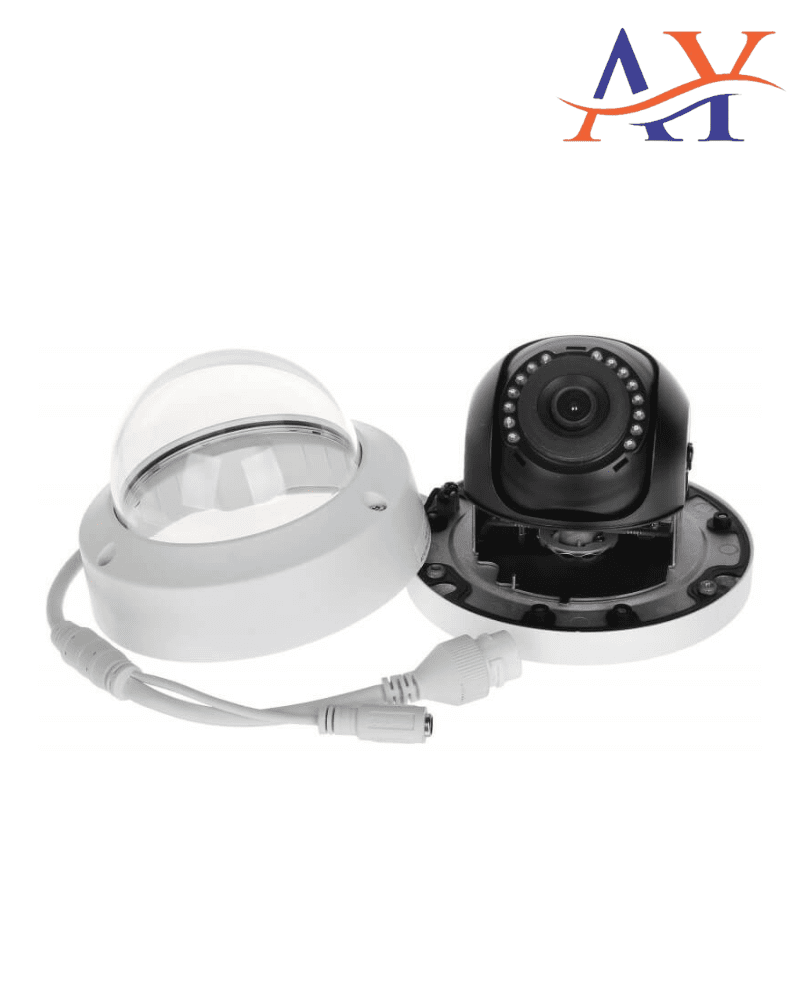

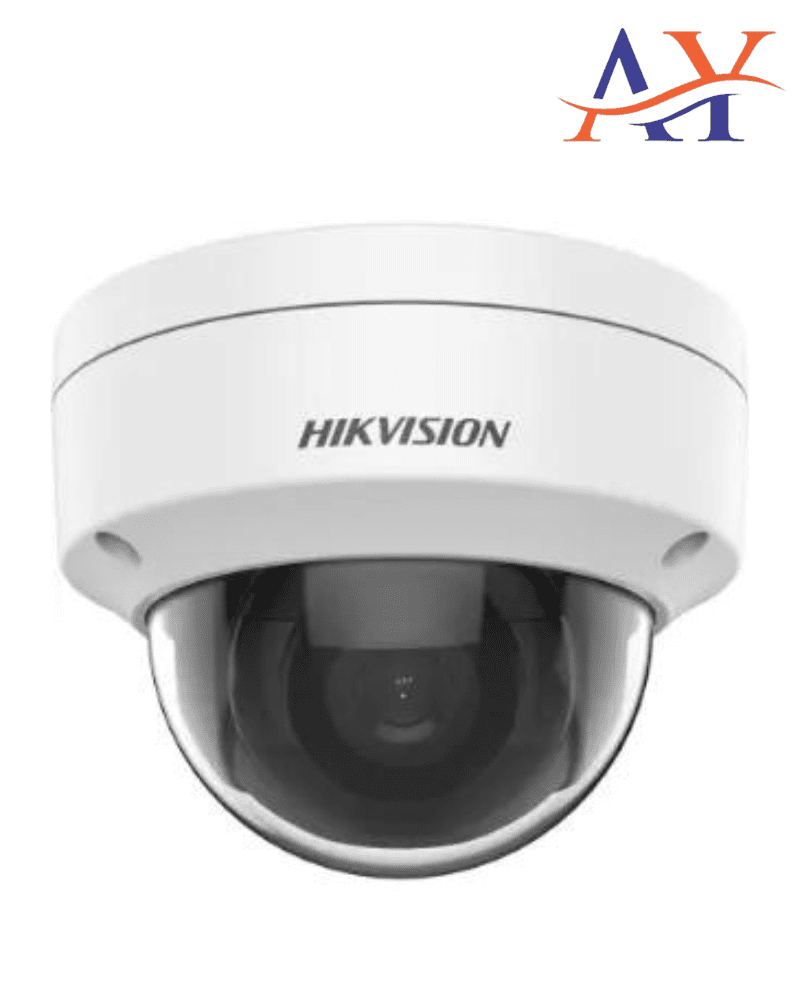

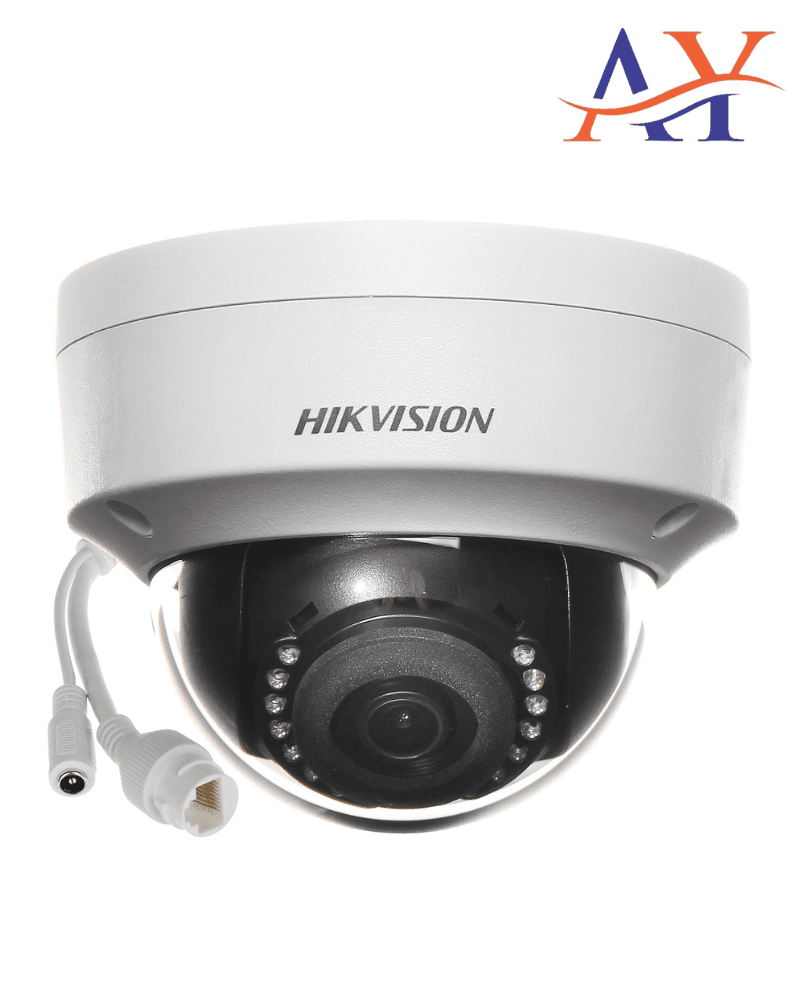

HIKVISION DS-2CD1123GOE-I 2 MP Fixed Dome Network Camera

High quality imaging with 2 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong backlight due to DWDR technology
Water and dust resistant (IP67) and vandal resistant (IK10)
EXIR 2.0: advanced infrared technology with long IR range

Specification

Camera
- Image Sensor: 1/2.8” progressive scan CMOS
- Min. Illumination: Color: 0.028Lux @ (F2.0, AGC ON)
- Shutter Speed: 1/3 s to 1/100, 000 s
- Slow Shutter: Yes
- Day & Night: IR cut filter
- Wide Dynamic Range: DWDR
- Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°
- DNR: 3D DNR
Lens
- Lens: 2.8 mm, 4 mm
- Auto-Iris: No
- Aperture: F2.0
- Focus: Fixed
- FOV: 2.8 horizontal FOV 114.8°, vertical FOV 62°, diagonal FOV 135.5°,4 mm, horizontal FOV 86°, vertical FOV 46.5°, diagonal FOV 102.5°
- Lens Mount: M12
Illuminator
- IR Range: Up to 30 m
- Wavelength: 850 nm
Video
- Max. Resolution: 1920 × 1080
- Video Compression: Main stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEG
- H.264 Type: Main Profile/High Profile/Baseline Profile
- H.265 Type: Main Profile
- Video Bit Rate: 32 Kbps to 8 Mbps
Smart Feature-Set
- Region Of Interest: 1 fixed region for main stream
- Image Enhancement: BLC, 3D DNR
- Image Setting: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
- Day/Night Switch: Auto, scheduled, day, night
- Main Stream Max. Frame Rate: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
- Sub-Stream Max. Frame Rate: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Network
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
- API: ONVIF (PROFILE S), ISAPI
- Simultaneous Live View: Up to 6 channels
- User/Host: Up to 32 users,3 levels: Administrator, Operator, and User
- Clienti: VMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
- Web Browser: IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
- Alarm Trigger: Motion detection, video tampering alarm, illegal login
Interface
- Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
General
- Firmware Version: V5.5.83
- General Function: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
- Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
- Power Supply: 12 VDC ± 25%, 5.5 mm coaxial power plug, PoE (802.3af, class 3)
- Material: Front cover: plastic, back cover & bracket: metal
- Dimensions: Camera: Ø 111 mm × 82.4 mm (4.4″ × 3.2″) With package: 134 mm × 134 mm × 108 mm (5.3″ × 5.3″ × 4.3″)
- Weight: Camera: Approx. 400 g (0.9 lb.), With package: Approx. 600 g (1.3 lb.)
- Power Consumption And Current: Camera: Approx. 400 g (0.9 lb.) With package: Approx. 600 g (1.3 lb.)
- Ingress Protection: IP67, IK10
