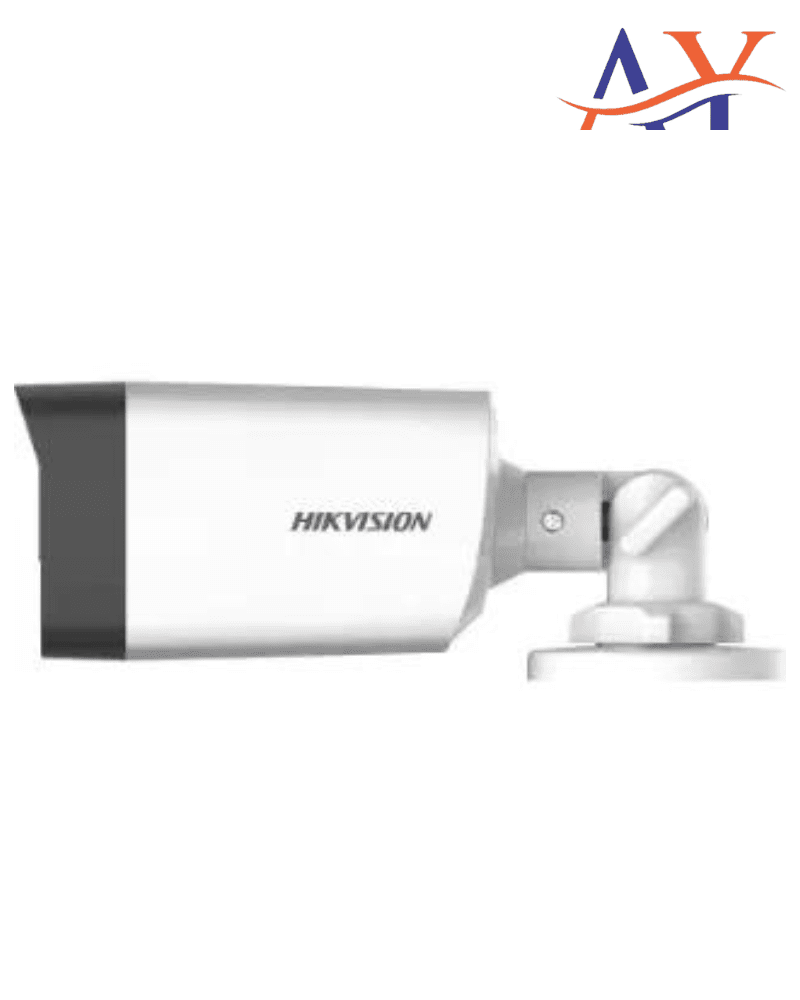

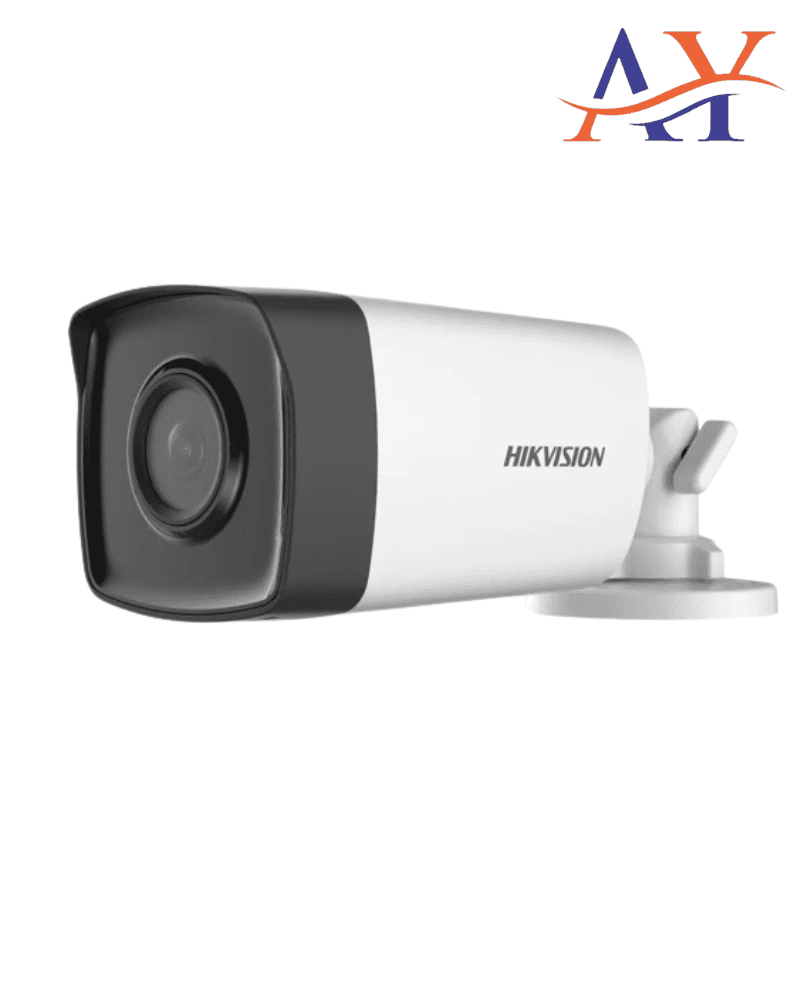

HIKVISION DS-2CE17HOT-IT5F 5 MP Fixed Bullet Camera

Camera

• Image Sensor: 5 MP CMOS
• Max. Resolution: 2560 (H) × 1944 (V)
• Min. Illumination: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Time
  • PAL: 1/25 s to 1/50, 000 s
  • NTSC: 1/30 s to 1/50, 000 s
• Day & Night: ICR
• Angle Adjustment: Pan: 0 to 360°, Tilt: 0 to 180°, Rotation 0 to 360°
• Signal System: PAL/NTSC

Lens

• Lens Type: 3.6 mm, 6 mm, 8 mm, 12 mm fixed lens
• Focal Length & FOV
  • 3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV:105°
  • 6 mm, horizontal FOV: 57°, vertical FOV: 43°, diagonal FOV:72°
  • 8 mm, horizontal FOV: 41°, vertical FOV: 31°, diagonal FOV:52°
  • 12 mm, horizontal FOV: 26°, vertical FOV: 19°, diagonal FOV:32°
• Lens Mount: M12


• Parameters Switch: STD/HIGH-SAT
• Settings: Brightness, Sharpness, Mirror, Smart IR
• Frame Rate
  • TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps
  • AHD: 5M@20fps, 4M@30fps, 4M@25fps
  • CVI: 4M@30fps, 4M@25fps
  • CVBS: PAL/NTSC
• Day/Night Mode: Auto/Color/BW (Black and White)
• Wide Dynamic Range (WDR): Digital WDR
• Image Enhancement: DWDR/BLC/HLC/Global
• Noise Reduction: Yes
• White Balance: Auto/Manual
• AGC: Yes

Interface

• Video Output: Switchable TVI/AHD/CVI/CVBS

General

• Material
  • Front Cover: Metal
  • Main Body: Plastic
• Dimension: 78.9 mm × 75.4 mm × 216.6 mm (3.10″ × 2.97″ × 8.53″)
• Weight: Approx. 330 g (0.73 lb.)
• Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
• Communication: HIKVISION-C
• Language: English
• Power Supply: 12 VDC ± 25%
• Consumption: Max. 5 W
• IR Range: Up to 80 m

Approval

• Protection: IP67
