Specification

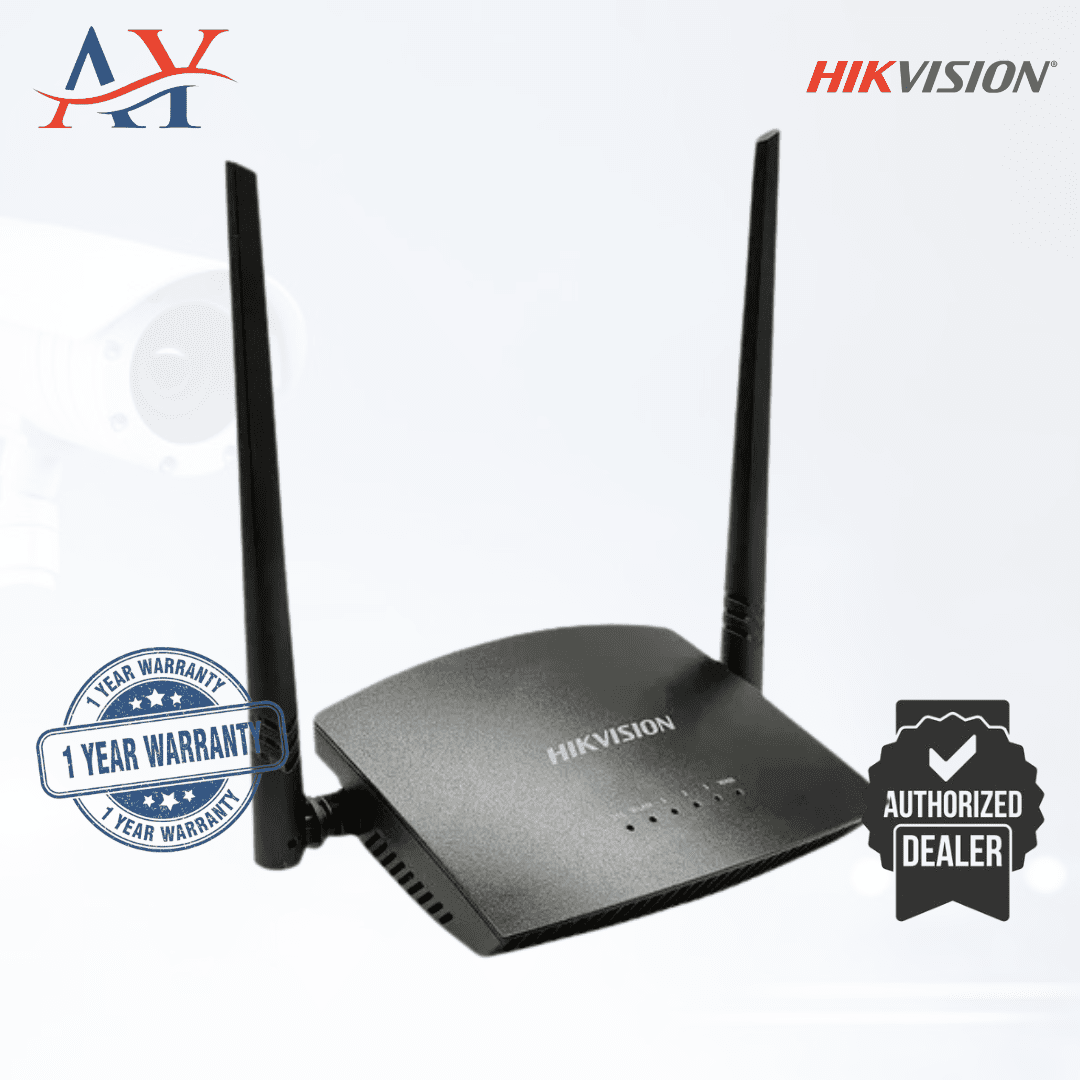

Hikvision DS-3WR3N 300M Wireless Router

• General

• Product Dimension (W × H × D)174.82 mm × 96.45 mm × 181.06 mm (6.88″× 3.80″× 7.13″)
• Package Dimension (W × H × D)231 mm × 203 mm × 51 mm (9.09″× 7.99″× 2.01″)
• Net Weight0.134 kg (0.295 lb)
• Packing List Wireless Router x 1, Ethernet cable × 1, Quick installation guide × 1
• Packing Method Single pack
• Working Temperature0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
• Working Humidity10% to 90% RH non-condensing
• Storage Temperature-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
• Storage Humidity5% to 90% RH non-condensing
• Installation Mode Desktop installation
• Max. Power Consumption≤ 5.4 W
• Gross Weight0.634 kg (1.398 lb)

• Wireless Parameter

• Data Rate2.4 GHz: 300 Mbps
• Wireless Standard IEEE 802.11b/g/n @2.4 GHz
• Transmitting Power18 dBm
• Wireless Performance Beamforming supported
• Receiving Sensitivity

  58 ± 2 dB@AC80 -MCS9

  84 ± 2 dB@AC80 -MCS0

• Antenna2 high gain antennas

• Hardware Parameter

• Network Interface4 × RJ45, 10/100 Mbps auto-negotiation
• LED Indicator LED indicator
• Reset Reset button
• Power Supply Method9 VDC, 1 A power adapter power supply
• Power Specifications9 VDC, 1 A

• Software Function

• Application function

  Wireless Router Mode, Wireless Repeater Mode, Client + AP, WISP, and AP Mode supported

  DHCP Server supported

  Guest Network Configuration supported

  Signal Adjustment supported

  Wi-Fi Schedule supported

• Security Mode WPA-PSK/WPA2-PSK, WPA/WPA2
• Security Mechanism Hide SSID
• Management Method Web
• Upgrade Web Update and Upgrade
• System Log System log
