Support H.265/H.264 video formats
Support audio over coaxial cable
Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
8-channel BNC input
Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080
Long transmission distance over coaxial cable
Support mainstream cameras of ONVIF and RTSP protocols

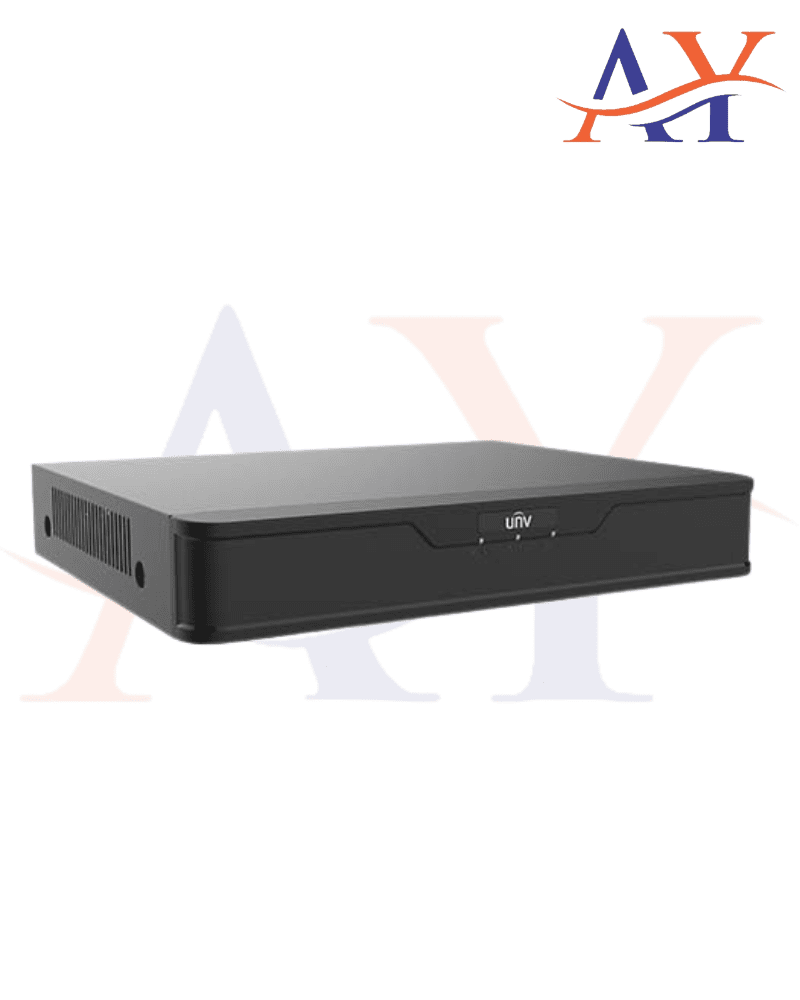

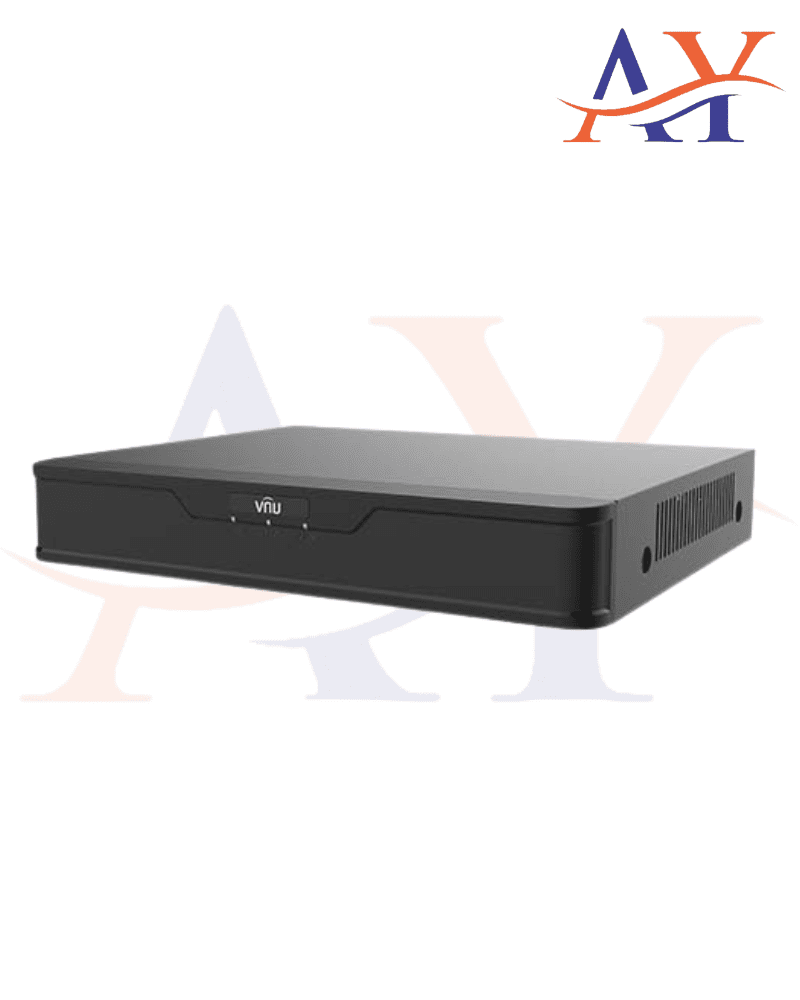

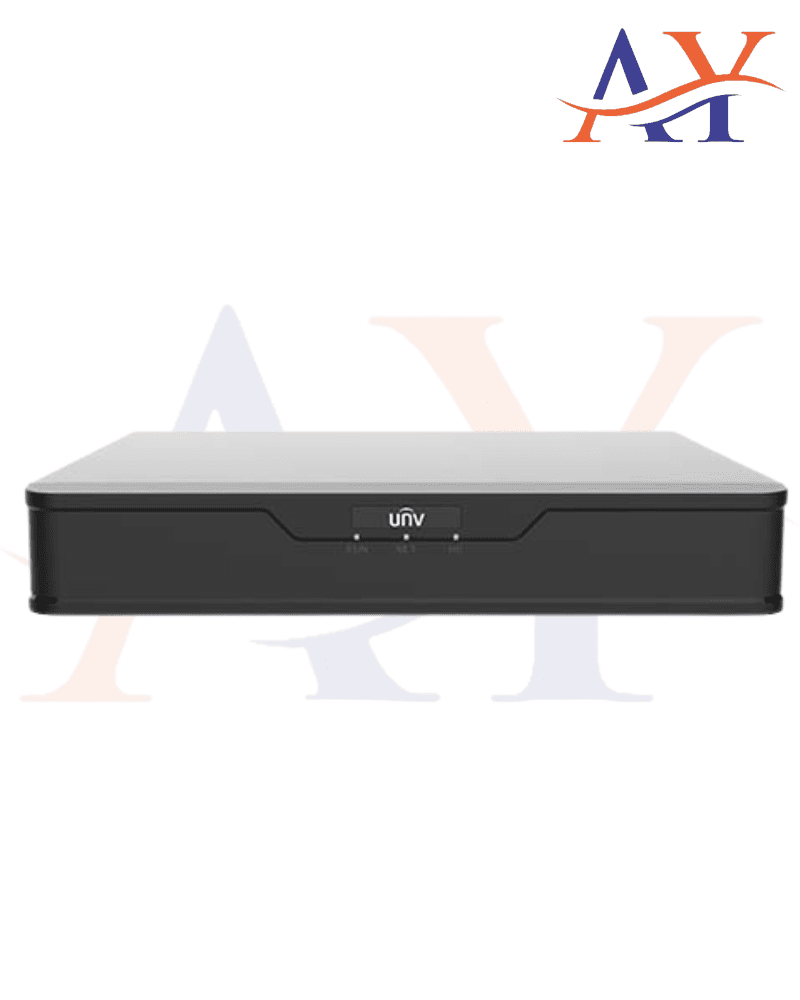

| Model | XVR301-08G3 | |||||
| Video/Audio Input | ||||||
| Analog Video Input | 8-ch, BNC | |||||
| IP Video Input | 4-ch(only IP up to 8ch), each channel up to 4MP | |||||
| Supported Analog Camera Types | Support AHD input: 5MP@12fps 4MP@15fps 1080P@30fps 720P@30fps Support TVI input: 5MP@12fps 4MP@15fps 1080P@30fps 720P@30fps Support CVI input: 1080P@30fps 720P@30fps Support CVBS input |
|||||
| Audio Input | 1-ch, RCA | |||||
| Audio Compression | G.711U | |||||
| Video/Audio Output | ||||||
| VGA Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz | |||||
| HDMI Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz | |||||
| Audio Output | 1-ch, RCA | |||||
| Synchronous Playback | HD:4-ch SD:8-ch |
|||||
| Live view display | HDMI/VGA: 1/4/6/8/9/16 | |||||
| Two-way Audio | 1-ch, RCA | |||||
| Network | ||||||
| Incoming Bandwidth | 32Mbps (Up to 40Mbps after all analog channel conversion) | |||||
| Outgoing Bandwidth | 64Mbps | |||||
| Remote Users | 128 | |||||
| Protocols | TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP | |||||
| Browser | IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows |
|||||
| Encoding | ||||||
| Recording Resolution | 5MP Lite/4MP Lite /1080P/1080P Lite/720P/CIF | |||||
| Recording Frame Rate |
Main stream: | Sub stream: | ||||
| 5MP Lite@6fps | D1@6fps | |||||
| 4MP Lite@8fps | D1@8fps | |||||
| 1080P Lite@12fps | D1@12fps | |||||
| 720P@12fps | D1@12fps | |||||
| Audio Sample Rate | 8KHz,16 bit per channel | |||||
| Audio Bit Rate | 64Kbps per channel | |||||
| Decoding | ||||||
| Capability | Analog: 4 x 5MP Lite@6,4x 4MP Lite@8, 4x 1080P Lite @12fps IP: 1 x 4MP@30, 2 x 1080P@30 |
|||||
| Hard Disk | ||||||
| SATA | 1 SATA interface | |||||
| Capacity | Up to 8TB for each HDD (The maximum HDD capacity varies with environment temperature) |
|||||
| General Alarm | ||||||
| General Alarm | Motion detection | |||||
| Alert Alarm | IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | |||||
| External Interface | ||||||
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface | |||||
| USB Interface | Rear panel: 2 x USB2.0 | |||||
| General | ||||||
| Power Supply | 12V DC Power Consumption: ≤ 8 W( without HDD ) |
|||||
| Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) | |||||
| Dimensions(W×D×H) | 260mm ×226mm× 47mm (10.2″ × 8.9″×1.8″) | |||||
| Weight ( without HDD ) | ≤1.1 Kg ( 2.42lb ) | |||||
| Certification | ||||||
| Certification | UL CE FCC RoHS WEEE |
|||||
