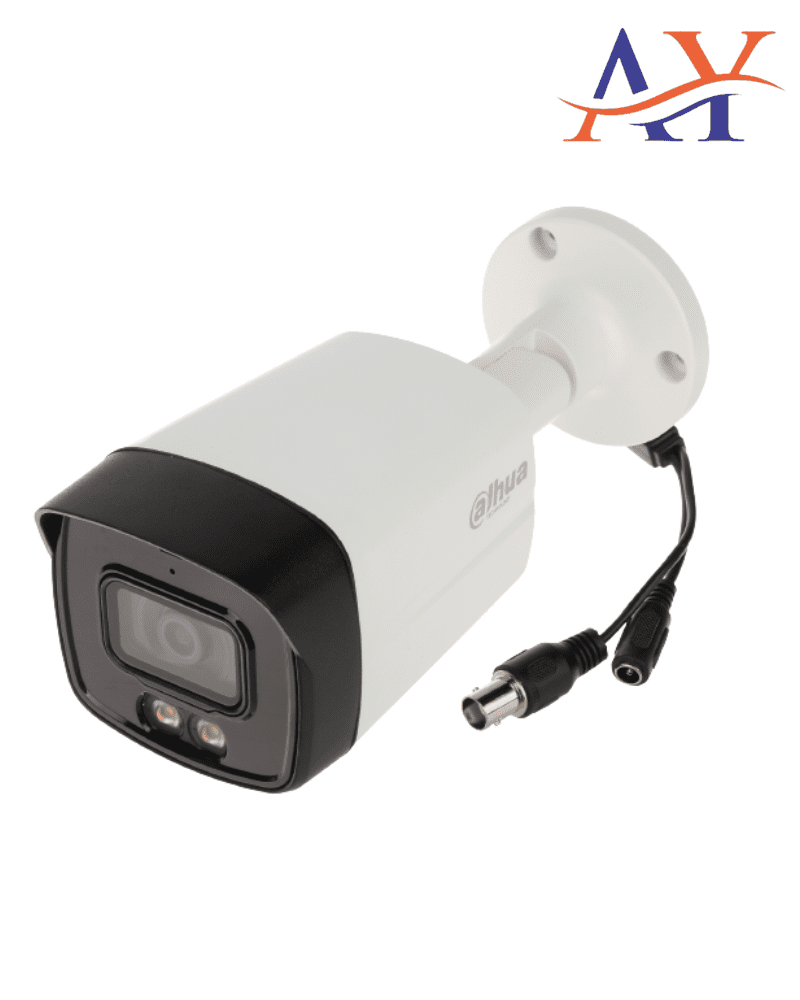

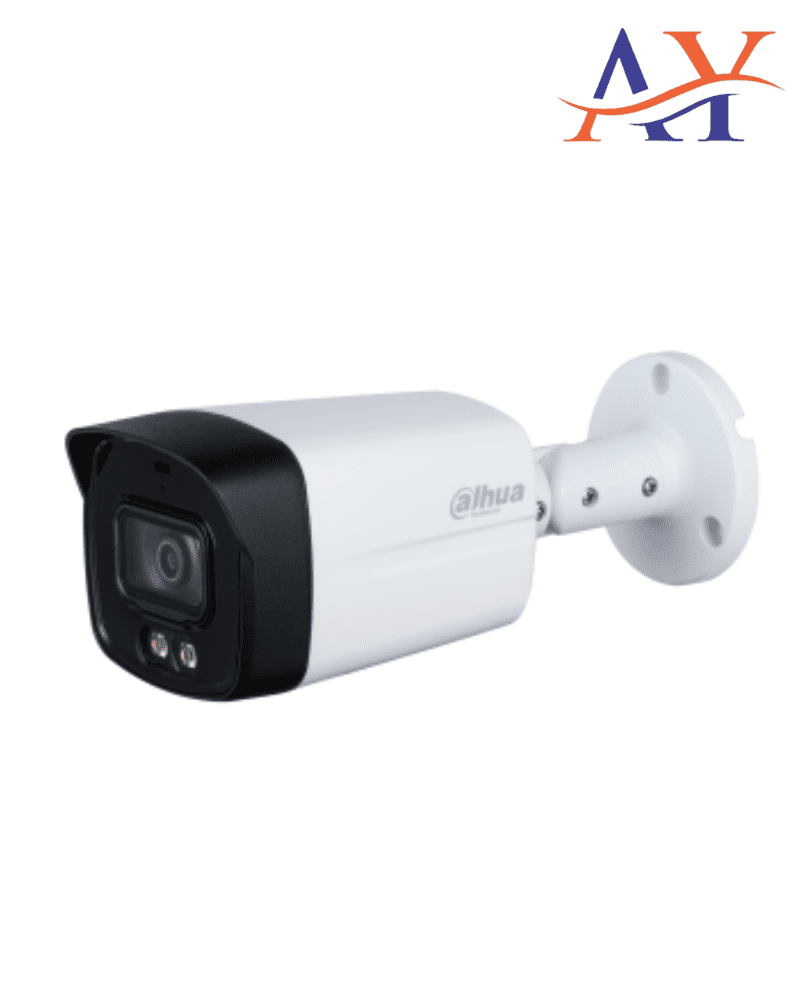

Dahua HAC-HFW1239TLM 2mp HDCVI Bullet Camera

Camera

Image Sensor

1/2.8 inch 2.16 Mega Pixels CMOS

Effective Pixels

1920 (H)×1080 (V), 2MP

Electronic Shutter Speed

PAL:1/25s–1/100000s
NTSC:1/30s–1/100000s

Minimum Illumination

0.005Lux/F1.6, 30IRE, 0Lux white Light on

Fill Light (White Light) Distance

Distance up to 40m (131.23ft)

Fill Light On/Off Control

Auto; Manual

Fill Light Number

2

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–180°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8m/3.6 mm

Max. Aperture

F1.6

Angle of View

2.8 mm:

126.2°×106.0°×56.5° (diagonal x horizontal x vertical)

3.6 mm:

103.6°x86.9°x46.3° (diagonal x horizontal x vertical)

Iris Type

Fixed iris

Close Focus Distance

2.8 mm: 0.6m (1.97ft)

3.6 mm: 1.2m (3.94ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

38.6m (126.6ft)

15.4m (50.5ft)

7.7m (25.3ft)

3.9m (12.8ft)

3.6 mm

55.2m (181.1ft)

22.1m (72.5ft)

11.0m (36.0ft)

5.5m (18.0ft)

Video

Video Frame Rate

CVI:

PAL: 1080@25fps, 720@25fps, 720@50fps;

NTSC: 1080@30fps, 720@30fps, 720@60fps

AHD: PAL: 1080@25fps,720@25fps;

NTSC: 1080@30fps,720@30fps

TVI: PAL: 1080@25fps,720@25fps,720@50fps;

NTSC: 1080@30fps,720@30fps,720@60fps

CVBS: PAL: 960×576H;

NTSC: 960×480H

Resolution

1080P (1920×1080); 720P (1280×720); 960H (704× 576/704×480)

BLC

BLC/HLC/WDR

WDR

DWDR

White Balance

Auto; Manual

Gain Control

Auto; Manual

Noise Reduction

2D NR

Smart Light

Yes

Electronic Defog

Yes

Digital Zoom

16X

Mirror

Off/On

Privacy Masking

Off/On (4 area, rectangle)

Certification

Certifications

CE (EN55032, EN55024, EN50130-4,EN60950-1)
FCC (CFR 47 FCC Part 15 subpart B, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Interface

Audio Interface

Built-in mic(-A)

Port

Video Port

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Power

Power Supply

12V ±30% DC

Power Consumption

Max 5W (12V DC, white light on)

Environment

Operating Temperature

-40 °C to +60 °C (-40 °F to 140 °F);

<95% (non-condensation)

Storage Temperature

-40 °C to +60 °C (-40 °F to 140 °F);

<95% (non-condensation)

Protection Grade

IP67

Structure

Casing

Metal front cover+plastic main body+metal bracket

Dimensions

198.4 mm×80.2 mm×76.2 mm (7.81”×3.16”×3.00”)

Net Weight

0.3Kg(0.66lb)

Gross Weight

0.45Kg(0.99lb)
