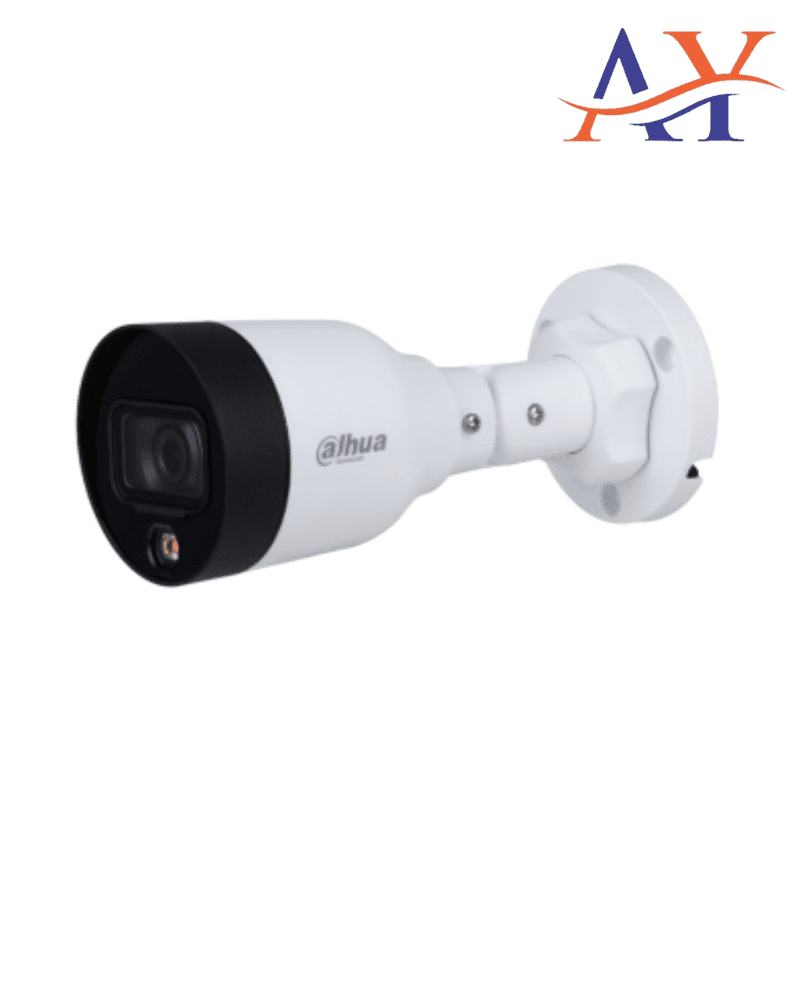

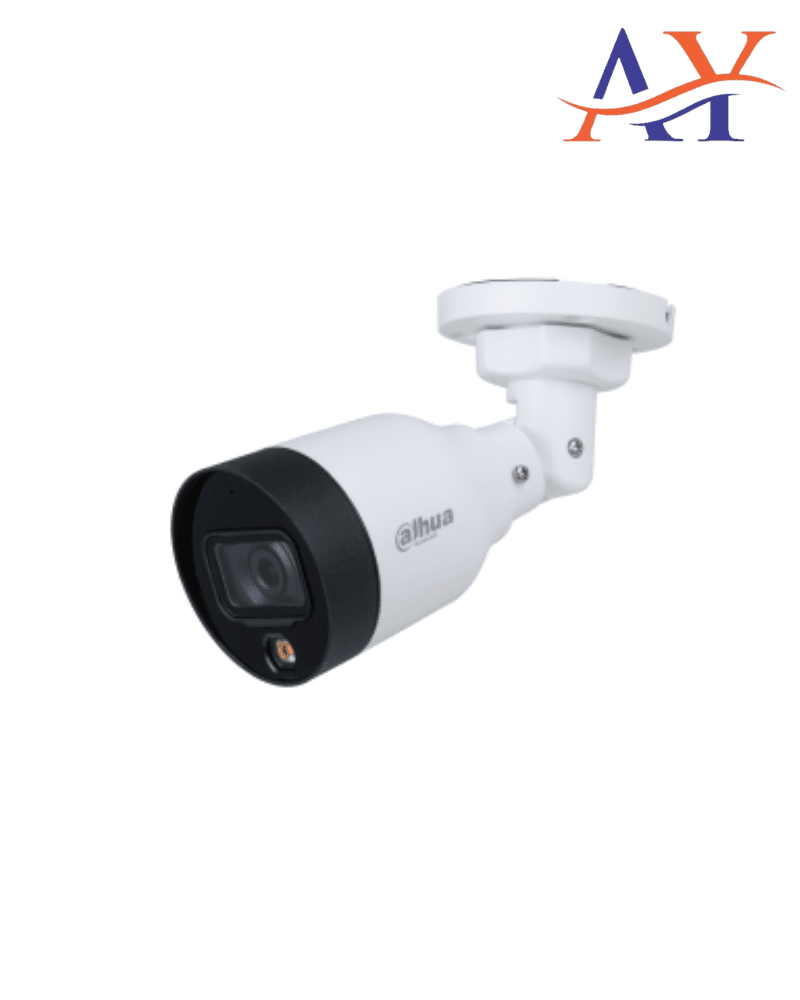

Dahua IPC-HFW1230S1 2mp Fixed-Focal Bullet Network Camera

Camera

Image Sensor

1/2.8” CMOS

Max. Resolution

1920 (H) × 1080 (V)

ROM

16 MB

RAM

64 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100000 s

Min. Illumination

0.01 Lux @F2.0

S/N Ratio

>56 dB

Illumination Distance

30 m (98.4 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

1 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0° to 360°

Tilt: 0° to 90°

Rotation: 0° to 360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

2.8 mm: F2.0

3.6 mm: F2.0

Field of View

2.8 mm: Horizontal: 102°; Vertical: 54°; Diagonal: 120°

3.6 mm: Horizontal: 84°; Vertical: 45°; Diagonal: 100°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 0.5 m (1.6 ft)

3.6 mm: 0.8 m (2.6 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

38.6 m
(126.6 ft)

15.4 m

(50.5 ft)

7.7 m

( 25.3 ft)

3.9 m
(12.8 ft)

3.6 mm

49.7 m

(163.1 ft)

19.9 m

(65.3 ft)

9.9 m
(32.5 ft)

5.0 m
(16.4 ft)

Video

Video Compression

H.265; H.264; H.264B; MJPEG (only supported by the sub stream)

Smart Codec

Smart H.265+/Smart H.264+

Video Frame Rate

Main Stream:

1920 × 1080 (1 fps–25/30 fps)

Sub stream:

704 × 576 (1 fps–25 fps)

704 × 480 (1 fps–30 fps)

Stream Capability

2 streams

Resolution

1080p (1920 × 1080); 1.3M(1280 × 960);720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–6144 kbps

H.265: 12 kbps–6400 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

DWDR

White Balance

Auto/natural/streetlamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Alarm

Alarm Event

Network disconnection; IP conflict; illegal access; motion detection; video tampering; safety exception

Network

Network

RJ-45 (10/100 Base-T)

SDK and API

Yes

Cybersecurity

Video encryption;configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast

Interoperability

ONVIF (Profile S/Profile T); CGI; P2P; Genetec

User/Host

6 (Total bandwidth: 36 M)

Storage

FTP

Browser

IE
Chrome
Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Client

IOS; Android

Certification

Certifications

CE-LVD: EN62368-1

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

FCC: 47 CFR FCC Part 15, Subpart B

Power

Power Supply

12V DC/PoE (802.3af)

Power Consumption

Basic power consumption: 1.4W (12V DC); 2.2W (PoE)

Max. power consumption (ICR + H.265+IR intensity): 3.3W (12V DC); 4.3W (PoE)

Environment

Operating Conditions

-40°C to +60°C (-40°F to +140°F)/less than ≤ 95%

Storage Temperature

-40°C to +60°C (-40°F to +140°F)

Protection

IP67

Structure

Casing

Metal + plastic

Product Dimensions

162.6 mm × Φ70 mm (6.4″ × Φ2.8″)

Net Weight

0.22 kg (0.4 lb)

Gross Weight

0.34 kg (0.7 lb)
