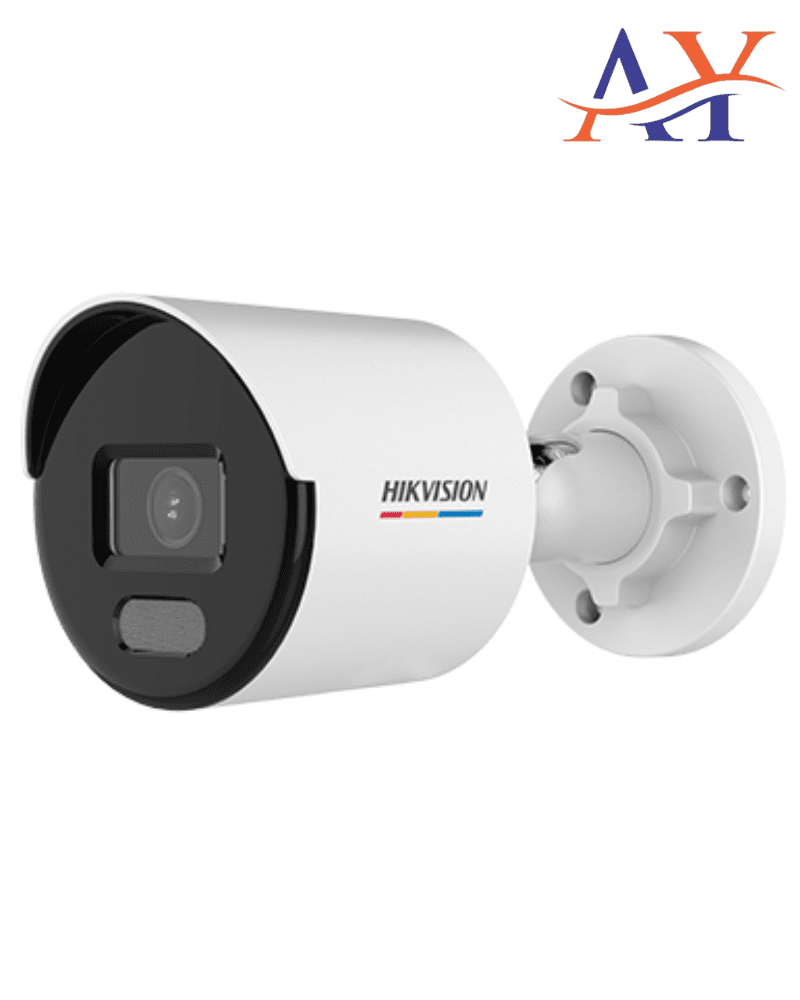

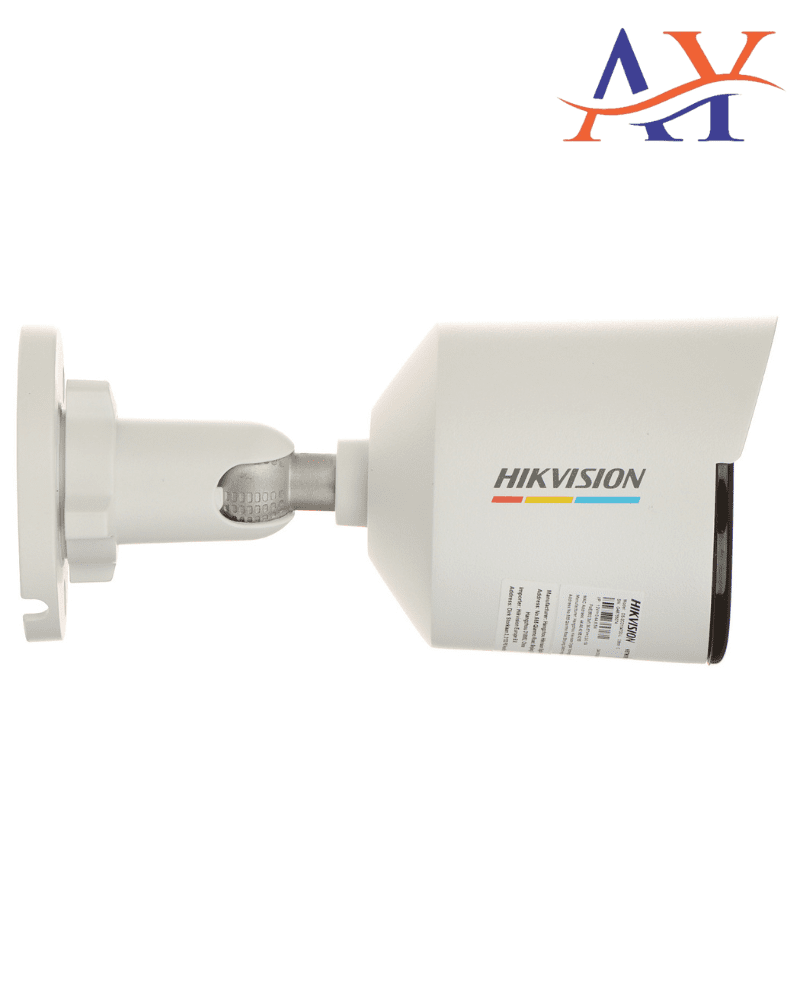

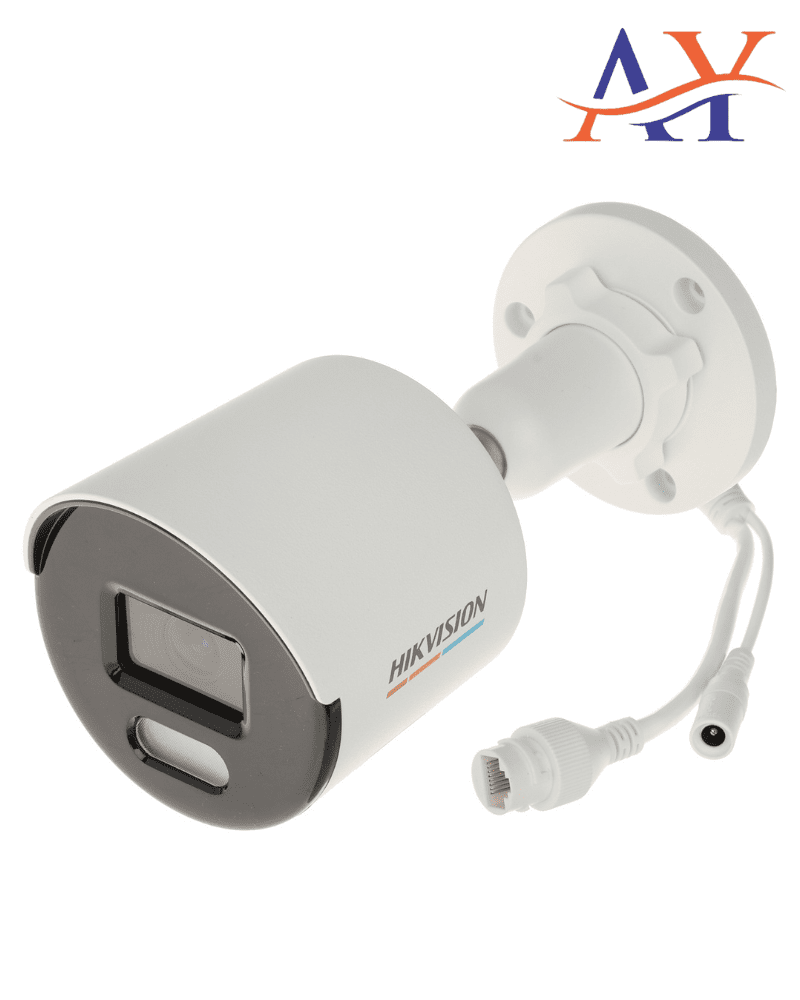

HIKVISION DS-2CD1047G0-LUF 4 MP ColorVu Fixed Bullet Network Camera

High quality imaging with 4 MP resolution
Excellent low-light performance
Efficient H.265+ compression technology
Water and dust resistant (IP67)
24/7 colorful imaging

- Camera
- Image Sensor1/3″ Progressive Scan CMOS
- Min. IlluminationColor: 0.001 Lux @(F1.0, AGC ON), 0 Lux with white light
- Shutter Speed1/3 s to 1/100, 000 s
- Slow ShutterYes
- Wide Dynamic Range120 dB
- Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
- Lens
- Focal Length & FOV2.8 mm, horizontal FOV 96.5°, vertical FOV 50.8°, diagonal FOV 113.9°4 mm, horizontal FOV 75.8°, vertical FOV 40.8°, diagonal FOV 89.1°
- Lens MountM12
- FocusFixed
- ApertureF1.0
- DORI
- DORI2.8 mm, D: 64.0 m, O: 25.4 m, R: 12.8 m, I: 6.4 m4 mm, D: 77.4 m, O: 30.7m, R: 15.5m, I: 7.7 m
- Illuminator
- Smart Supplement LightYes
- White Light RangeUp to 30 m
- Video
- Max. Resolution2560 × 1440
- Main Stream50 Hz:20 fps (2560 × 1440),25 fps (1920 × 1080, 1280 × 720)
  60 Hz:

  20 fps (2560 × 1440),

  30 fps (1920 × 1080, 1280 × 720)
- Sub-Stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Video CompressionMain stream: H.265/H.264Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- H.264+Main stream supports
- H.265+Main stream supports
- Region Of Interest (ROI)1 fixed region for main stream
- Audio
- Audio Compression-UF: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
- Audio Bit Rate-UF: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
- Audio Sampling Rate-UF: 8 kHz/16 kHz
- Environment Noise Filtering-UF: Yes
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface, ISAPI
- User/HostUp to 32 users. 3 levels: administrator, operator and user
- ClientiVMS-4200, Hik-Connect
- Web BrowserPlug-in required live view: IE 10+Plug-in free live view: Chrome 57.0+, Firefox 52.0+Local service: Chrome 57.0+, Firefox 52.0+
- Image
- Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
- Day/Night SwitchDay, Night, Auto, Schedule
- Image EnhancementBLC, 3D DNR
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage-UF: Built-in memory card slot, support microSD card, up to 256 GB
- Built-In Microphone-UF: Yes
- Hardware Reset-UF: Yes
- Event
- Basic EventMotion detection, video tampering alarm, exception
- General
- Linkage MethodUpload to FTP/memory card (-UF), notify surveillance center, send email, trigger recording (-UF), trigger capture
- Camera MaterialAluminum alloy body
- Camera DimensionØ76.6 mm × 164.4 mm (Ø3″ × 6.5″)
- Package Dimension234 mm × 120 mm × 117 mm (9.2″ × 4.7″ × 4.6″)
- Camera WeightApprox. 430 g (0.95 lb.)
- With Package WeightApprox. 648 g (1.42 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
- Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
- Web Client LanguageEnglish, Ukrainian
- General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
- Firmware VersionV5.5.122
- Power Consumption And Current12 VDC, 0.4 A, max. 5 WPoE: (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W
- Power Supply12 VDC ± 25%PoE: 802.3af, Class 3
- Power InterfaceØ5.5 mm coaxial power plug
- Approval
- EMCFCC SDoC (47 CFR Part 15, Subpart B);CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);RCM (AS/NZS CISPR 32: 2015);
  KC (KN 32: 2015, KN 35: 2015)
- SafetyUL (UL 60950-1);CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
  BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
- EnvironmentCE-RoHS (2011/65/EU);WEEE (2012/19/EU);Reach (Regulation (EC) No 1907/2006)
- ProtectionIP67 (IEC 60529-2013)
