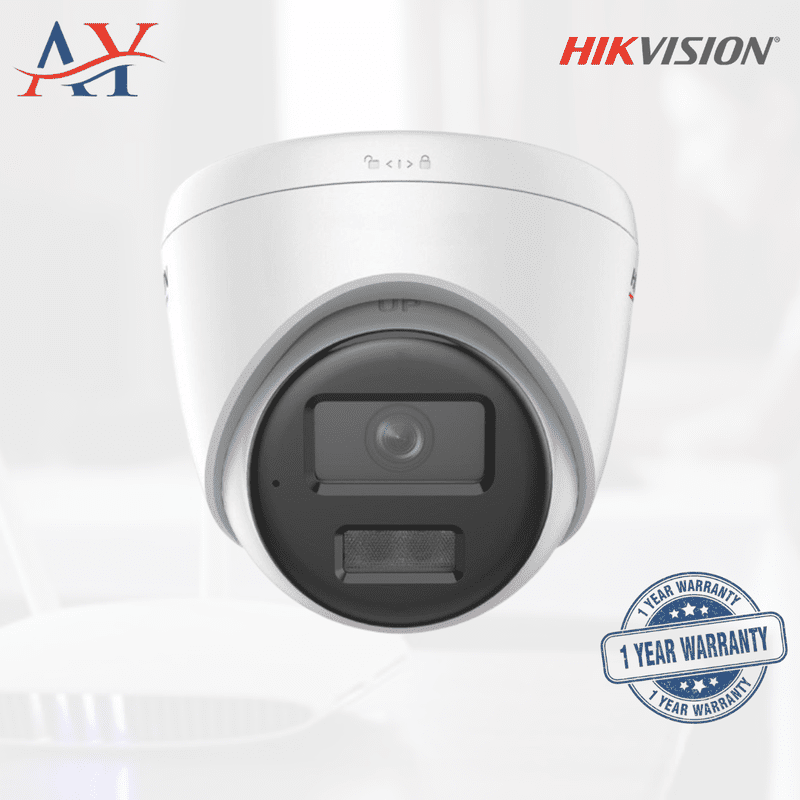

HikVision DS-2CD1321G2-LIU(F) 2 MP Smart Hybrid Network Camera

2.8 mm, horizontal FOV 101°, vertical FOV 56°, diagonal FOV 118°

4 mm, horizontal FOV 80°, vertical FOV 44°, diagonal FOV 94°

2.8 mm, D: 44 m, O: 17 m, R: 8 m, I: 4 m

4 mm, D: 55 m, O: 22 m, R: 11 m, I: 5 m

IR: up to 20 m

White Light: up to 15 m

50 Hz: 25 fps (1920 × 1080, 1280 × 720)

60 Hz: 30 fps (1920 × 1080, 1280 × 720)

50 Hz: 25 fps (640 × 480, 640 × 360)

60 Hz: 30 fps (640 × 480, 640 × 360)

Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG

Up to 32 users

3 user levels: administrator, operator, and user

Plug-in required live view: IE 10, IE 11,

Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

NA

NA

12 VDC ± 25%, 0.41 A, max. 5 W,Ø5.5 mm coaxial power plug, reverse polarity protection,

PoE: IEEE 802.3af, Class 3, max. 6.5 W

FCC: 47 CFR Part 15, Subpart B,

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014

CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017

CE-RoHS: 2011/65/EU,

WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006
