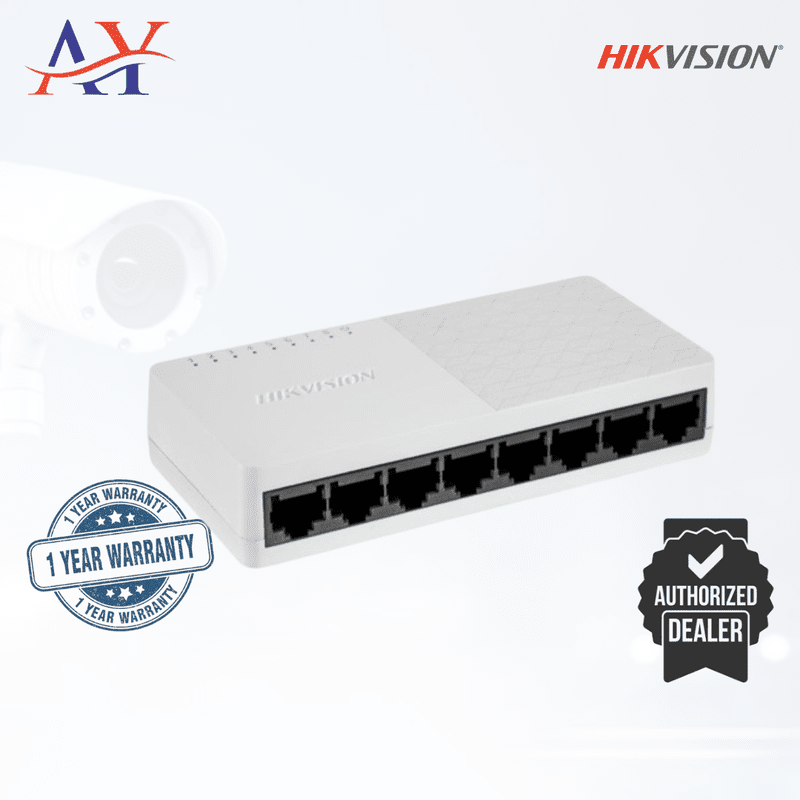

HikVision DS-3E0108D-O 8-Port Fast Ethernet Plastic Switch

Original price was: ₨3,800.00.Current price is: ₨2,500.00.

5 x 10/100 Mbps ethernet port
Supports ADI/ADIX
Store-and-forward switching
Supports MAC address auto-learning and aging
Simple, compact body design
Supports desktop and wall-mounting installation
Plug & play, easy to use

Categories: HIKIVISION IP CAMARAS, POE Switchs Tags: Hikvision, HikVision DS-3E0108D-O, Hikvision POE Switch, Hikvision POE Switch 8 port, POE Switch, Poe Switch Pakistan, Switch

Description
Reviews (0)

DESCRIPTION

HikVision DS-3E0108D-O 8-Port 10/100 Mbps Fast Ethernet Plastic Switch

5 x 10/100 Mbps ethernet port
Supports ADI/ADIX
Store-and-forward switching
Supports MAC address auto-learning and aging
Simple, compact body design
Supports desktop and wall-mounting installation
Plug & play, easy to use

TECH SPECS:

General
Shell ABS
Net Weight0.093 kg (0.205 lb)
Dimensions (W × H × D)83.00 mm × 22.00 mm × 52.00 mm (3.27” × 0.87” × 2.05”)
Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature–40 °C to 85 °C (–40 °F to 185 °F)
Operating Humidity5% to 95% (no condensation)
Relative Humidity5% to 95% (no condensation)
Power Supply5 VDC, 0.6 A
Installation Mode Desk-Mounted
Max. Power Consumption3 W
Surge Protection2 KV

Network Parameters
Ports5 × 10/100 Mbps RJ45 port
MAC Address Table2 K
Switching Capacity1 Gbps
Packet Forwarding Rate0.74 Mpps
Internal Cache768Kbits

Approval
EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020)
Safety CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
Chemistry CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
