Multiple working modes to address your business needs: Normal, Secure and Surveillance
Support port traffic control
Support for secure mode, all downlink ports can communicate only with uplink ports
Up to 250m transmission distance on surveillance mode
Support buffer optimization
All metal housing, safe and reliable

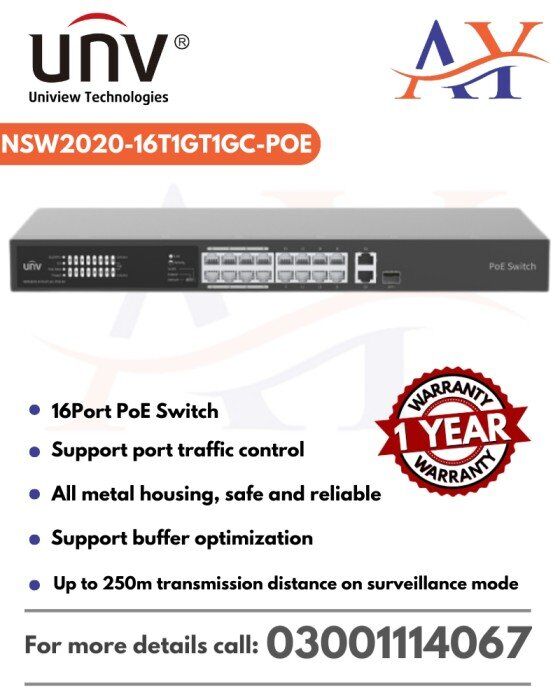

| Model | NSW2020-16T1GT1GC-POE-INM |
| Ports | 16×10/100Mbps PoE+ ports (RJ45)+2×1000Mbps Combo ports,RJ45 port, full duplex, MDI/MDI-X adaptive |
| Standards | IEEE802.3,IEEE802.3u,IEEE802.3z,IEEE802.3ab,IEEE802.3x,IEEE802.3af,IEEE802.3at,IEEE802.3az |
| Ports for long-distance transmission | Ports 1 to 16 |
| Switching capacity | 7.2Gbps |
| Forwarding performance | 5.36Mpps |
| Forwarding mode | Store-and-forward switching |
| Packet Buffer | 4M bit |
| MAC | 16K |
| Dimensions (W×D×H) | 440*189.8*44mm |
| Weight | 2.12KG |
| Power supply | AC: 100-240V, 50/60Hz, Max. 2.5A |
| PoE | 802.3at/af （4/5+，7/8-） |
| Max. PoE Power | Max capacity: 225W Max capacity for single port: 30W |
| Switch Power/ Consumation | Max. 150W |
| Prior Ports | 1~8 |
| Cooling Fans | 1 |
| Operating temperature | -10°C-55°C (14°F-131°F) |
| Operating humidity | 10%～90% (noncondensing) |
| Storage humidity | 5%～90% (noncondensing) |
| Indicator | POWER: Steady on: AC input is normal Off: No AC input |
| PoE: Off: No PoE power supply Steady on: PoE power supply is normal |
|
| PoE-MAX： off ：The POE power supply power of the whole machine is less than 80% of the specification Steady on : The POE power supply power of the whole machine is greater than 85% of the specification |
|
| LINK/ACT： Off: No link Steady on: Linked Flashing: Transmitting data |
|
| Working Mode | Default(Normal mode) : All ports can communicate with each other. VLAN(Secure mode): Downlink ports can communicate only with uplink ports. Enabling PD keepalive function, the switch will restart the IPC via PoE power when the IPC sends no message in a period of time. Extend(Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports. |
| Certifications | CE: CE-LVD (EN 62368-1:2014/A11:2017）; CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-EMC (EN 55032: 2015;EN 55035:2017; EN 61000-3-2:2014;EN 61000-3-3:2013+A1:2019); CE-RoHS (2011/65/EU;(EU)2015/863 ); RCM (AS/NZS CISPR 32: 2015); 1C (ICES-003: Issue 6, 2016) UL: UL (UL 62368-1) FCC: FCC (47 CFR Part 15, Subpart B); KC: KC (KN 32: 2015, KN 35: 2015) WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
