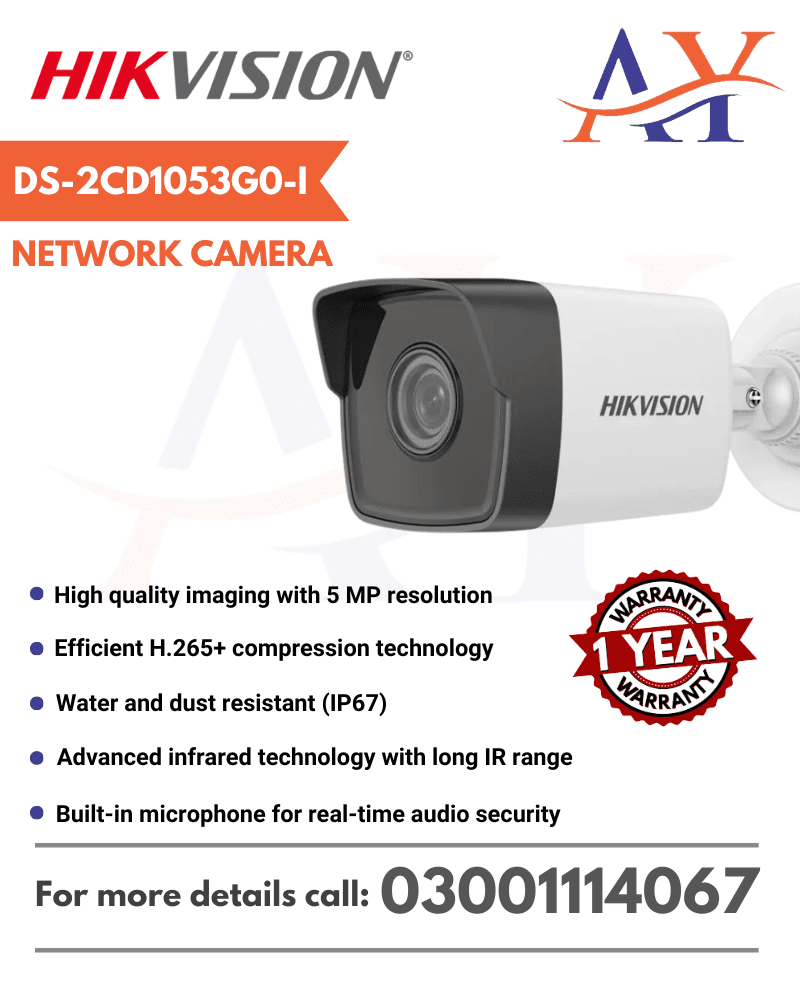

HIKVISION DS-2CD1053G0-I 5 MP Fixed Bullet Network Camera

High quality imaging with 5 MP resolution
Efficient H.265+ compression technology
Clear imaging even with strong back lighting due to 120 dB WDR
Water and dust resistant (IP67)
EXIR 2.0: advanced infrared technology with long IR range
-UF: Built-in microphone for real-time audio security

Specification

Camera
- Image Sensor: 1/2.7″ Progressive Scan CMOS
- Min. Illumination: Color: 0.01 Lux @(F1.2; AGC ON), 0.028 Lux @(F2.0; AGC ON)
- Shutter Speed: 1/3 s to 1/100,000 s
- Slow Shutter: Yes
- Day &Night: IR Cut Filter
- Wide Dynamic Range: 120 dB
- Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°
- DNR: 3D DNR
Lens
- Lens: 2.8/4/6 mm
- Auto-Iris: No
- Aperture: F2.0
- Focus: Fixed
- FOV: 2.8 mm, horizontal FOV: 100°, vertical FOV: 74°, diagonal FOV: 130°,4 mm, horizontal field of view: 75°, vertical FOV: 55°, diagonal FOV: 98°,6 mm, horizontal field of view: 49°, vertical FOV: 37°, diagonal FOV: 60°
- Lens Mount: M12
Illuminator
- IR Range: Up to 30 m
- Wavelength: 850nm
Video
- Max. Resolution: 2560 × 1920
- Main Stream: 50Hz:12.5fps (2560 × 1920), 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720),60Hz: 15fps (2560 × 1920), 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)
- Sub Stream: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
- Video Compression: Main stream: H.265/H.264 ,Sub-stream: H.265/H.264/MJPEG
- H.264 Type: Baseline Profile/Main Profile/High Profile
- H.265 Type: Main Profile
- Video Bit Rate: 32 Kbps to 8Mbps
Smart Feature-Set
- Region Of Interest: Support 1 fixed region for main stream and sub-stream
- Image Enhancement: BLC/3D DNR
- Image Setting: Saturation, brightness, contrast and sharpness are adjustable via client software and web browser
- Day/Night Switch: Auto/Scheduled/Day/Night
Network
- Network Storage: NAS (NFS,SMB/CIFS)
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, UDP, Bonjour, 802.1x
- API: ONVIF(PROFILE S,PROFILE G), ISAPI
- Simultaneous Live View: Up to 6 channels
- User/Host: Up to 32 users,3 levels: Administrator, Operator and User
- Client: iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
- Web Browser: IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
- Alarm Trigger: Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD error, HDD full
Interface
- Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
General
- Firmware Version: V5.5.52
- General Function: Heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
- Startup And Operating Conditions: -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
- Power Supply: 12 VDC ± 25%,PoE: 802.3af, class 3
- Power Consumption And Current: 12 VDC, 0.5 A, max. 5 W, PoE (802.3af, 36 to 57 V), 0.2 A to 0.1 A, max. 6.5 W
- Material: Front cover: metal, bracket: plastic, camera body: plastic
- Dimensions: Camera: Ø 70 mm × 172.7 mm (2.7″ × 6.8″), With package: 216 mm × 121 mm × 118 mm (8.5″ × 4.8″ × 4.6″)
- Weight: Camera: 300g (0.7 lb), With package: 550g (1.2 lb.)
- Interface Protection: IP67
Compression Standard
- H.264: +Main stream supports
- H.265: +Main stream supports
