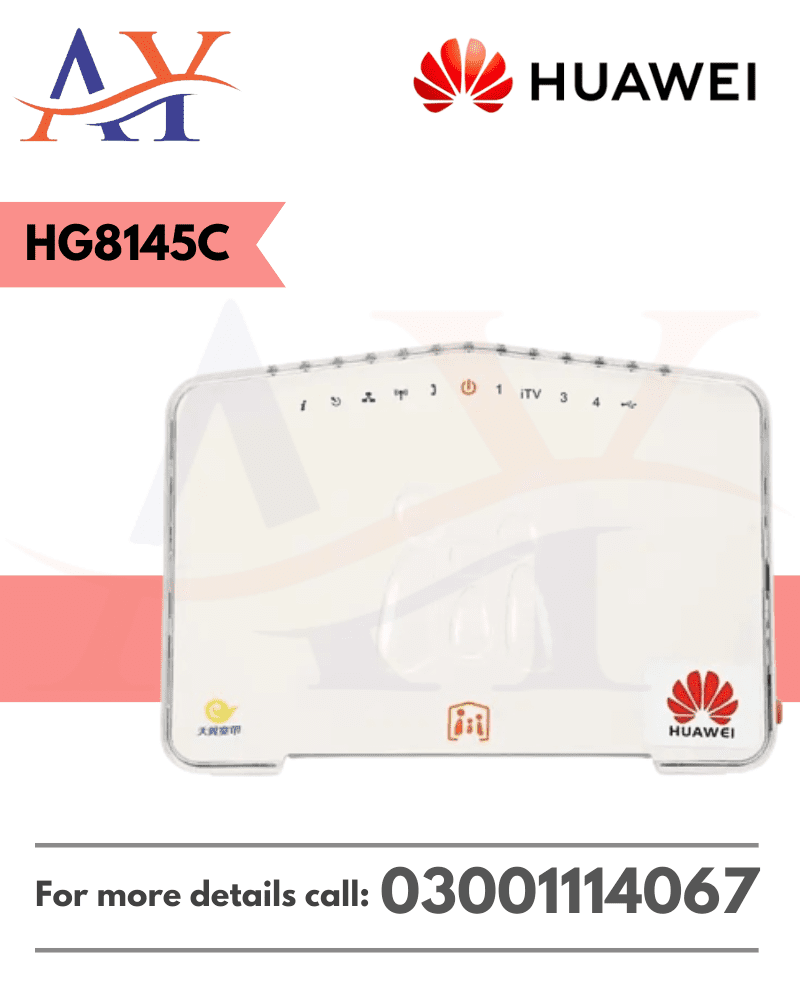

hg8145c Huawei GPON ONT 1GE+3FE+1TEL+Wi-Fi+USB hg8145cEcho Life HG series Optical Network Terminals (ONTs) are user-side devices in Huawei Fiber-To-The-House (FTTH) solutions and support ultra-bandwidth access for home or Small Office/Home Office (SOHO) users using GPON technologies.
Echo Life HG series ONTs provide POTS ports and FE/GE auto-negotiation Ethernet ports, enabling high-performance forwarding capabilities. Enhance future-proof services with Huawei Echo Life HG series ONTs, consisting of three main categories: bridging type, bridging + voice type, and gateway type.
| NNI | GPON |
| Optical interface | SC/UPC interface Class B+ |
| UNI | 4FE+Wi-Fi+USB |
| Wi-Fi standard | 2 × 2 MIMO 802.11b/g/n |
| Antenna gain | 2dBi |
| Dimensions(W x D x H) | 156mm×125mm×30mm |
| Power supply | Power supply: 11-14V DC, 1A; |
| Input power: 150V~264V AC,50/60Hz | |
| Operating temperature and operating humidity | 0°C-+40°C;5%-95%, non-condensing |
| Cooling | Passive cooling |
| Maximum number of MAC addresses learned | 1024 |
| L2 forwarding capability | 2 Gbit/s downstream (with any length packets); |
| 1 Gbit/s upstream (with any length packets) | |
| IPv4 L3 forwarding capability | 2 Gbit/s downstream (with any length packets); |
| 1 Gbit/s upstream (with any length packets) | |
| IPv6 L3 forwarding capability | 500 Mbit/s (V300R013C00 to V300R015C00); |
| 2 Gbit/s (V300R015C10 and later) |
