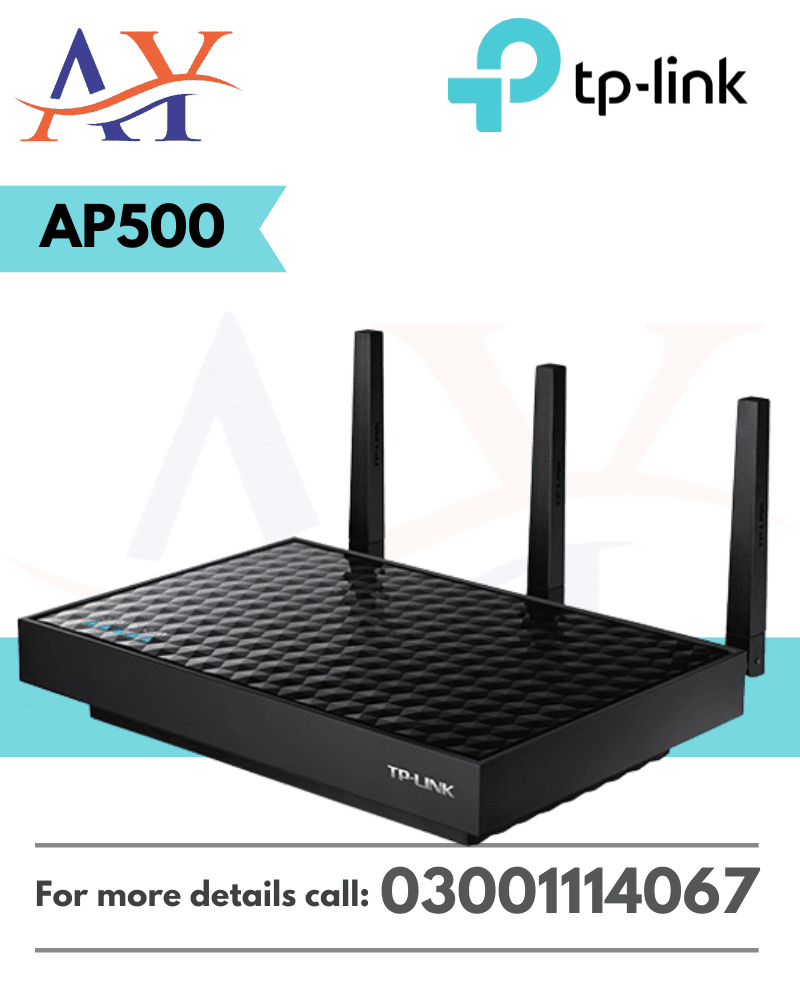

TP-link AP500 AC1900 Wireless Gigabit Access Point

Category:
  • Simultaneous 600Mbps on 2.4GHz and 1300Mbps on 5GHz totals 1900Mbps Wi-Fi speeds, ideal for 4K streaming and online gaming
  • 3 dual-band detachable antennas provide superior Wi-Fi coverage to eliminate “dead zones”
  • Beam forming technology delivers highly targeted and efficient wireless connections
  • Gigabit Ethernet port provides gigabit-class Internet access or an ultra-fast connection for wired device
  • Dual Core 1GHz processor ensures great performance, even with more devices connected at the same time
  • Various operation modes, including AP, Repeater/Bridge, Client, and Multi-SSID, provide flexible solutions to meet the wireless needs in any situation
    HARDWARE FEATURES

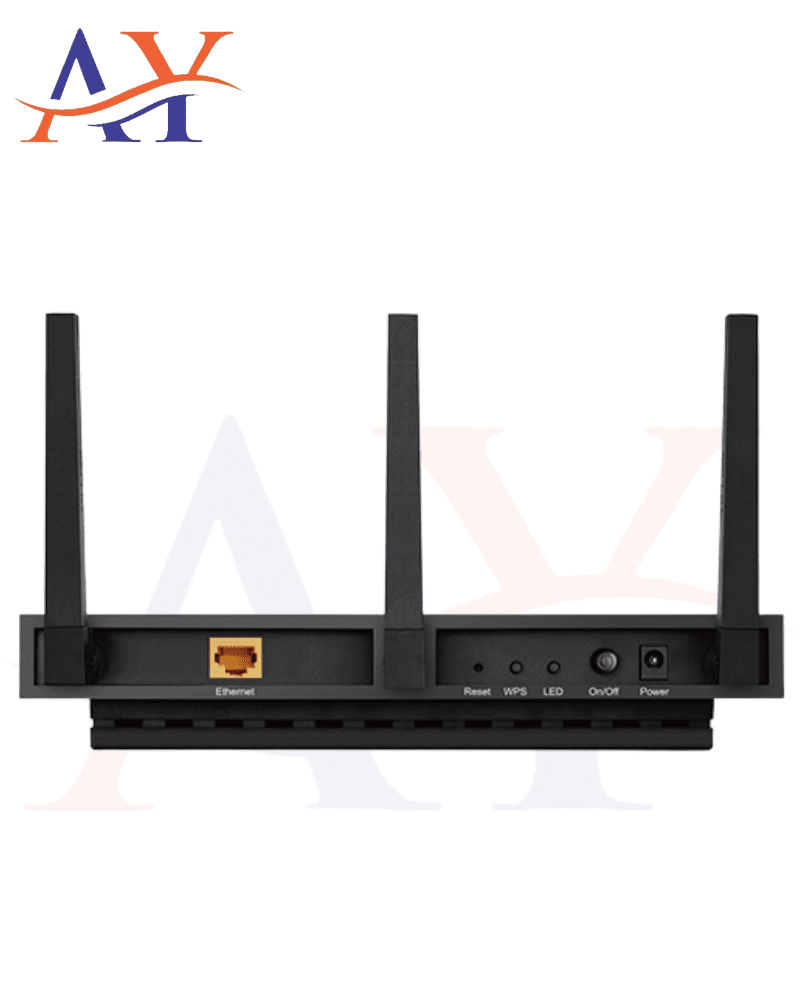

    INTERFACE 1 * 10/100/1000Mbps Ethernet Port (RJ45)
    BUTTON WPS Button, Reset Button, LED Button, Power Button
    EXTERNAL POWER SUPPLY 12V/2.5A
    DIMENSIONS ( W X D X H ) 9.5 X 6.4 X 1.7 in. (242 X 162 X 44mm)
    ANTENNA 3 dual band detachable antennas
    WIRELESS FEATURES
    WIRELESS STANDARDS IEEE 802.11a/ac, IEEE 802.11b/g/n
    FREQUENCY 2.4GHz & 5GHz(11ac)
    SIGNAL RATE 2.4GHz: Up to 600Mbps
    5GHz: Up to 1300Mbps
    RECEPTION SENSITIVITY 2.4GHz:
    11g 54M: -76dBm@10% PER
    11n HT20 MCS7: -73dBm@10% PER
    11n HT40 MCS7: -71dBm@10% PER
    5GHz:
    11a 6Mbps:-94dBm@10% PER
    11a 54Mbps: -75dBm@10% PER
    11ac HT20 MCS8: -66dBm@10% PER
    11ac HT40 MCS9: -62dBm@10% PER
    11ac HT80 MCS9: -59dBm@10% PER
    WIRELESS MODES Access Point, Repeater (Range Extender)/Bridge with AP, Client, Multi-SSID
    WIRELESS FUNCTIONS Wireless Statistic, Concurrent Mode boost both 2.4G/5G WiFi band, LED Control, Domain Login Function
    WIRELESS SECURITY 64/128-bit WEP, WPA/WPA2, WPA-PSK / WPA2-PSK
    TRANSMISSION POWER FCC: <30dBm
    OTHERS
    CERTIFICATION FCC, RoHS

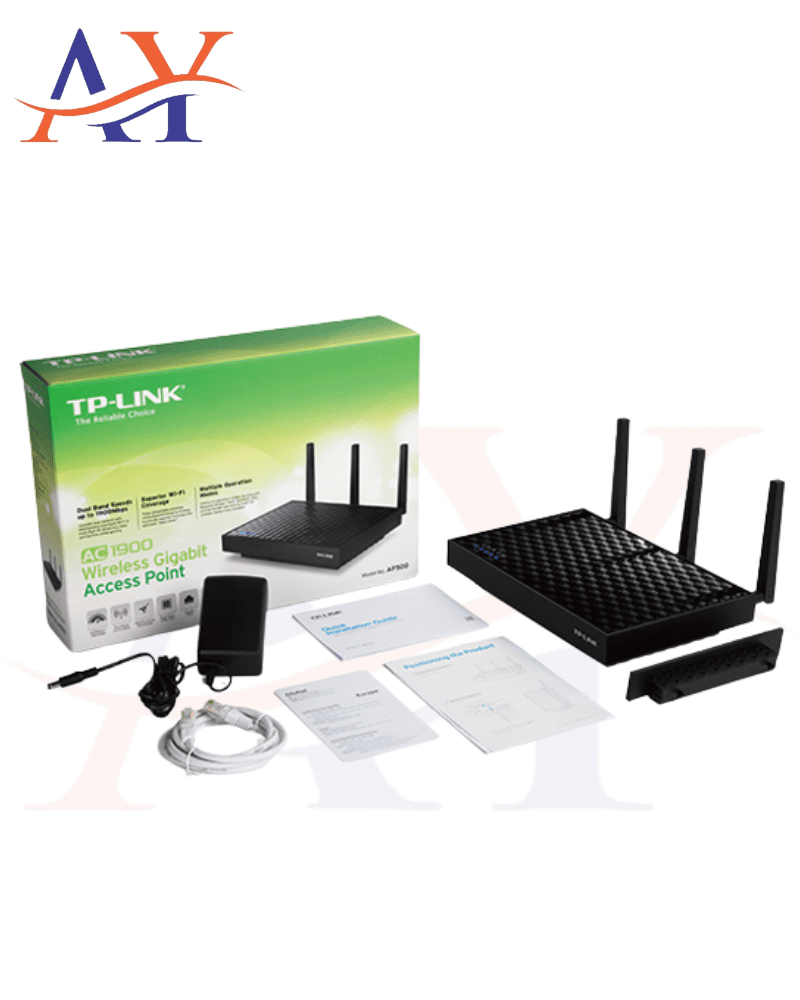

    PACKAGE CONTENTS AC1900 Wireless Gigabit Access Point, AP500
    3 Detachable Antennas
    Power Adapter
    RJ-45 Ethernet Cable
    Desktop Mounting Stand
    Quick Installation Guide
    SYSTEM REQUIREMENTS Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10, Mac® OS, NetWare®, UNIX® or Linux.
    ENVIRONMENT Operating Temperature: 0°C~40°C (32°F~104°F)
    Storage Temperature: -40°C~70°C (-40°F~158°F)
    Operating Humidity: 10%~90% non-condensing
    Storage Humidity: 5%~90% non-condensing
    CERTIFICATIONS CE, FCC, RoHS
