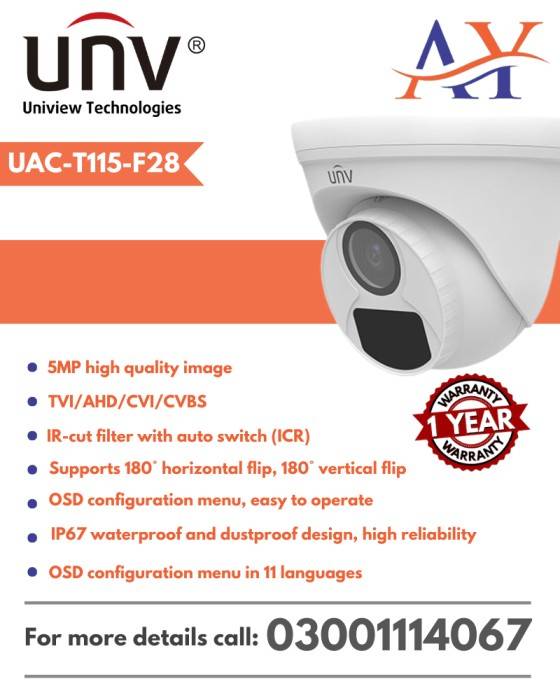

UNIVIEW UAC-T115-F28 5MP HD Fixed IR Turret Analog Camera

Category: UNV ANALOG CAMARAS

Description
Reviews (0)

• 5MP high quality image
• TVI/AHD/CVI/CVBS
• IR-cut filter with auto switch (ICR)
• Supports 180° horizontal flip, 180° vertical flip
• OSD configuration menu, easy to operate
• IP67 waterproof and dustproof design, high reliability
• OSD configuration menu in 11 languages
• 3-Axis

Model	UAC-T115-F28	UAC-T115-F40
Sensor
Pixel	5MP
Size	1/2.7″
Minimum illumination	0.02lux(F2.0, AGC ON) 0 lux (IR on)
Lens
Lens	2.8mm	4.0mm
Lens mount	M12
Angle of view	H: 102.2° V: 53.9° D: 124.8°	H: 82.9° V: 46.1° D: 100.0°
Illuminator
Illuminator	One IR illuminator
Illumination distance	20m
Lifetime	≥60,000 hours
Video
Resolution	5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V) 4MP: 2560(H)×1440(V) 2MP: 1920(H)×1080(V)
Frame rate	TVI: 5MP@20fps, 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVBS: PAL, NTSC
Shutter time	PAL: 1/25s-1/50000s NTSC: 1/30s–1/50000s
Exposure mode	4 modes: Global (default), BLC, HLC, DWDR
Day/Night	3 modes: Auto (default), Day, Night
Digital noise reduction	2D
White balance	Two modes: Auto (default), Manual
WDR	DWDR
Smart IR	Support
Flip	Supports 180° horizontal flip, 180° vertical flip.
Interface
Power	5.5mm power interface
Video output	BNC, supports TVI/AHD/CVI/CVBS
Operating environment
Temperature	-30℃ to 60℃(-22℉ to 140℉)
Humidity	≤95% (RH, non-condensing)
Surge protection	4KV
Ingress protection	IP67
General
Power	DC 12V(±25%), with reverse polarity protection and surge protection, Max 3.6W
Mount	Ceiling mount (default), optional backbox, wall mount bracket
Dimensions	Φ118mm96mm (diameterheight)
Material	Plastic
Weight	182g(0.401lb)
Certification	CB, CE, FCC
