Support H.265/H.264 video formats
Support audio over coaxial cable
Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
4-channel BNC input
Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080
Long transmission distance over coaxial cable
Support mainstream cameras of ONVIF and RTSP protocols

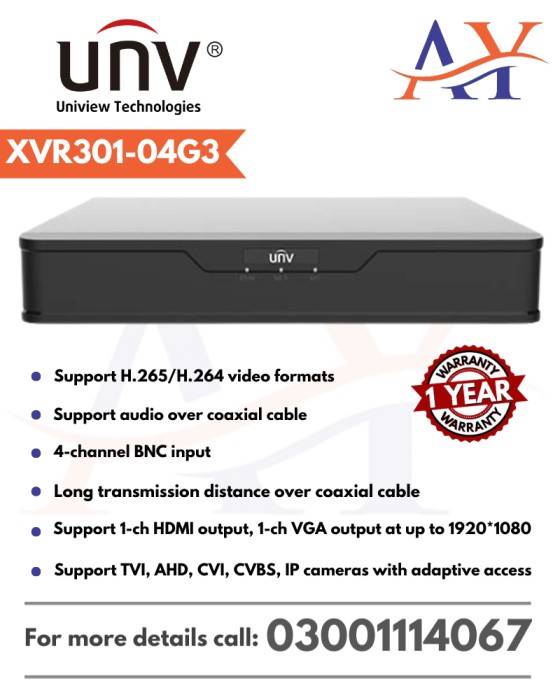

| Model | XVR301-04G3 | |||||
| Video/Audio Input | ||||||
| Analog Video Input | 4-ch, BNC | |||||
| IP Video Input | 2-ch(only IP up to 6ch), each channel up to 4MP | |||||
| Supported Analog Camera Types | Support AHD input: 5MP@20fps 4MP@30fps 1080P@30fps 720P@60fps Support TVI input: 5MP@20fps 4MP@30fps 1080P@30fps 720P@60fps Support CVI input: 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support CVBS input |
|||||
| Audio Input | 1-ch, RCA | |||||
| Audio Compression | G.711U | |||||
| Video/Audio Output | ||||||
| VGA Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz | |||||
| HDMI Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz | |||||
| Audio Output | 1-ch, RCA | |||||
| Synchronous Playback | HD:2-ch SD:4-ch |
|||||
| Live view display | HDMI/VGA: 1/4/6/8/9 | |||||
| Two-way Audio | 1-ch, RCA | |||||
| Network | ||||||
| Incoming Bandwidth | 16Mbps (Up to 24Mbps after all analog channel conversion) | |||||
| Outgoing Bandwidth | 48Mbps | |||||
| Remote Users | 128 | |||||
| Protocols | TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP | |||||
| Browser | IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows |
|||||
| Encoding | ||||||
| Recording Resolution | 5MP Lite/4MP Lite/1080P/720P/CIF |
|
||||
| Recording Frame Rate |
Main stream: | Sub stream: |
|
|||
| 5MP Lite@12fps | D1@12fps |
|
||||
| 4MP Lite@15fps | D1@15fps |
|
||||
| 1080P@15fps | D1@15fps |
|
||||
| 720P@25fps | D1@25fps |
|
||||
| Audio Sample Rate | 8KHz,16 bit per channel | |||||
| Audio Bit Rate | 64Kbps per channel | |||||
| Decoding | ||||||
| Capability | Analog: 2 x 5MP Lite@12, 2 x 4MP Lite@15, 2 x 1080P@15 IP: 1 x 4MP@30, 2 x 1080P@30 |
|||||
| Hard Disk | ||||||
| SATA | 1 SATA interface | |||||
| Capacity | Up to 8TB for each HDD (The maximum HDD capacity varies with environment temperature) |
|||||
| General Alarm | ||||||
| General Alarm | Motion detection | |||||
| Alert Alarm | IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | |||||
| External Interface | ||||||
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface | |||||
| USB Interface | Rear panel: 2 x USB2.0 | |||||
| General | ||||||
| Power Supply | 12V DC Power Consumption: ≤ 8 W( without HDD ) |
|||||
| Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) | |||||
| Dimensions(W×D×H) | 260mm ×226mm× 47mm (10.2″ × 8.9″×1.8″) | |||||
| Weight ( without HDD ) | ≤1.1 Kg ( 2.42lb ) | |||||
| Certification | ||||||
| Certification | UL CE FCC RoHS WEEE |
|||||
